Godrej Cat -6 Network Cable

GODREJ - ST-CIP24-100 (305 Mtr.)

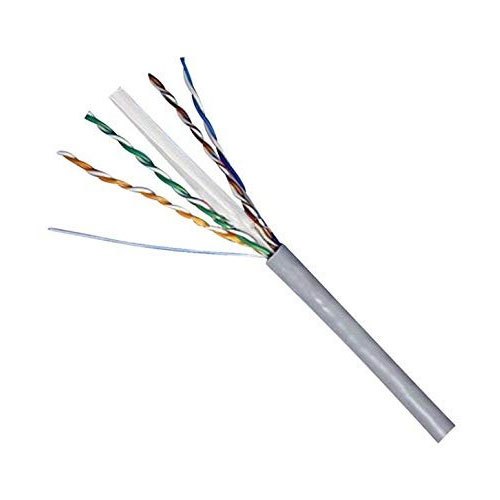

DESCRIPTION 1/0.490 MM X 4 PAIR CAT6 UTP PVC JACKETING NETWORKING CABLE

CONDUCTOR - CONDUCTOR MATERIAL NO OF STRANDS CONDUCTOR (MM)

OPERATING TEMPERATURE - -150C to 700C

1 Nos ANNEALED BARE COPPER = 0.490 0.015 mm INSULATION

MATERIAL THICKNESS (MM) DIAMETER (MM)

HDPE (High Density Polyethylene)

0.20 mm (Nominal)

1.00 0.10 mm

PAIR TWISTING # PAIR SEQUENCE

Pair-1- Blue + White-Blue

Pair-2 - Orange + White-Orange

Pair-3 - Green + White-Green

Pair-4 - Brown + White-Brown

LAYING STAGE 4 PAIR LAID UP

OUTER SHEATH

MATERIAL

THICKNESS (MM)

DIAMETER (MM)

COLOUR

PVC

0.50 mm 0.05MM

5.60 0.30 mm

Grey

ELECTRICAL PARAMETER

CONDUCTOR RESISTANCE AT 200C

RESISTANCE DC UNBALANCE

INSULATION RESISTANCE

DIELECTRIC STRENGTH

SPARK TEST

CAPACITANCE TO 1KHz (Approx)

NORMAL VELOCITY OF PROPAGATON

IMPEDANCE

DELAY SKEW

98.00 /Km (Maximum)

5% (Maximum)

>367.0 M/KM AT 500 VDC

0.700 KV AC for 1 Minute (Withstood)

1.0 KV AC for 0.15 Seconds (Withstood)

5.6nF/100m

0.69

100 15%

< 45 nS/100m

All of the 4pair twisted together with Seperator

i.e. Cross Filler

MECHANICAL

PERFORMANCE

INSULATION & SHEATH (UNAGED)

TENSILE STRENGTH

ELONGATION

HOT DEFORMATION TEST (PVC Jacketing) 50% Maximum (80 20C for 4h)

HEAT SHOCK TEST (PVC Jacketing)

COLD BEND TEST (PVC Jacketing)

BENDING RADIUS TEST

INSULATION PVC JACKET

13.79 N/mm2 Min. 12.50 N/mm2 (Minimum)

300% (Minimum) 150% (Minimum)

150 20C X 1 hrs (No Cracks)

-15 20C for 2-3 hrs (No Cracks)

8 Times of Overall Dia (No Cracks)
